Cross Section & Groove Design Data

Available Cross Sections for Encapsulated O-Rings & Groove Design Data
CROSS SECTIONS (A)				(D)		(W)		FEP / PFA
Inch		MM		Groove Depth		Groove Width		Wall Thickness
.063±.004		1.60±0.10		.046		.087		.010
.070±.004		1.78±0.10		.049		.100		.010
.079±.004		2.00±0.10		.057		.111		.010
.094±.004		2.40±0.10		.069		.127		.010
.098±.004		2.50±0.10		.074		.132		.010
.103±.004		2.62±0.10		.078		.137		.010
.118±.004		3.00±0.10		.088		.157		.010
.122±.004		3.10±0.10		.092		.161		.010
.125±.004		3.20±0.10		.095		.164		.010
.134±.005		3.40±0.13		.104		.174		.010
.139±.005		3.53±0.13		.108		.178		.012
.150±.006		3.80±0.15		.118		.191		.012
.157±.006		4.00±0.15		.125		.201		.012
.170±.006		4.30±0.15		.135		.217		.015
.177±.006		4.50±0.15		.140		.226		.015
.187±.006		4.75±0.15		.147		.238		.015
.197±.006		5.00±0.15		.157		.248		.015
.210±.006		5.33±0.15		.165		.267		.015
.217±.007		5.50±0.18		.172		.276		.015
.225±.007		5.70±0.18		.178		.284		.015
.236±.007		6.00±0.18		.190		.296		.015
.250±.008		6.35±0.20		.200		.313		.020
.275±.008		7.00±0.20		.225		.338		.020
.295±.012		7.50±0.30		.240		.364		.020
.315±.015		8.00±0.38		.257		.390		.020
.331±.015		8.40±0.38		.267		.410		.020
.354±.020		9.00±0.30		.290		.434		.020
.375±.020		9.53±0.38		.306		.460		.020
.394±.020		10.00±0.51		.322		.484		.020
.437±.020		11.10±0.51		.355		.530		.030
.472±.020		12.00±0.51		.393		.571		.030
.500±.020		12.70±0.51		.401		.620		.030
.562±.025		14.30±0.64		.450		.689		.030
.591±.025		15.00±0.64		.466		.736		.030
.625±.025		15.90±0.64		.500		.770		.030
.708±.025		18.00±0.64		.565		.900		.030
.750±.025		19.00±0.64		.580		.970		.030
.787±.025		20.00±0.64		.600		1.032		.030
1.000±.035		25.40±0.89		.757		1.270		.045*
1.250±.050		31.75±1.27		.940		1.585		.045*
*PFA / Silicone Only

Design Recommendation Disclaimer:
Recommendations on application design and material selection are based upon available technical data and are offered as suggestions only. Each user should conduct evaluations to determine the suitability for his particular application. ROW, Inc. offers no express or implied warranties concerning the form, fit, or function of a product in any application.

Small I.D. Encapsulated O-Ring "Ovality" Design Tip

When you take a straight length of elastomer cord and FEP or PFA tubing, and form it into the shape of an o-ring, the mechanical stresses placed upon the elastomer dictates that the cross section will not remain ROUND, but become OVAL.

This is particularly relevant on encapsulated o-rings with small inside diameters on all cross sections; but especially on large cross sections. (Standard elastomeric o-rings are molded; therefore this condition is not present).

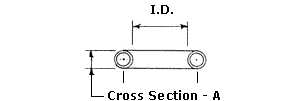

The o-ring cross section will become oval with an enlargement of the axial cross section; and a reduction in the cross section to the radial axis. (see diagram A) Without knowing the intended application (axial or radial seal), the only method that can be used to determine the correct dimension, is to apply the average cross section measurement from the axial AND the radial axis. The average of these 2 figures is used to determine if the o-ring is within manufacturing standards.

Instructions for Installing TFE-O-SIL O-Rings

Any surface in direct contact with the O-Ring should be smooth and free from sharp edges, burrs and deep scratches. A 20 micro-inch finish is recommended.

If it is difficult to install the O-Ring over a shaft, it may be "stretched" by first immersing the O-Ring in boiling water for a few minutes. This softens and enlarges the O-Ring. After installation, it may be necessary to apply heat to the O-Ring once again so it will shrink back to a tight fit when cooled.

Do not bend the O-Ring too sharply as the Teflon will tend to kink under the strain, however, if it does become kinked, it will not affect the operation in most applications.

Sealing with Teflon encapsulated O-Rings is sometimes a little different than sealing with rubber O-Rings. A rubber O-Ring will readily flow into imperfections of sealing surfaces. Teflon, being harder, takes time to flow into imperfections. The O-Ring may leak on initial start-up. To correct this situation if it occurs after installing the O-Ring, allow it to rest in place under load for a few hours or overnight. This allows the Teflon to coldflow and fill voids for proper sealing on start-up. Another method is to install a pre-heated O-Ring, and allow to cool under load. The heated O-Ring is softer and flows quicker into imperfections.

CAUTION

Within normal use temperatures, Teflon is attacked by so few chemicals that it is easier to describe the exceptions rather than list the chemicals with which Teflon is compatible. Teflon should not be used with the following:

1. Alkali metals such as elemental sodium, potassium, lithium, etc. These alkali metals remove fluorine from the polymer molecule.
2. Extremely potent oxidizers, fluorine (F2) and related compounds (e.g., chlorine trifluoride, CIF3). These can be handled by Teflon, but only with great care, as fluorine is absorbed into the resins, and the mixture becomes sensitive to a source of ignition such as impact.
3. 80% NaOH or KOH, metal hydrides such as borances (e.g., B2H6), aluminum chloride, ammonia (NH3), certain amines (R-NH2) and imines (R-NH) and 70% nitric acid at temperatures near the suggested service limit.

Design and engineering assistance is available from TFE-O-SIL at no charge. However, any selection or application suggestions offered by TFE-O-SIL, are only to assist the customer...and in ALL CASES, determination of fitness for purpose or use is solely the customer's responsibility.

Hints for Inserting Coupling Gasket

Teflon encapsulated coupling gaskets are more rigid than plain elastromeric gaskets due to the Teflon encapsulation and are therefore a little more difficult to insert. After installing just a few, you will be an expert.

Insert gasket perpendicular to opening with OD of gasket 90° from the locking arm holes to prevent damage to Teflon. Tip gasket and insert lower part of gasket into groove directly under 1 locking arm hole. Cover the other locking arm hole with a thin flat object such as a 6" stainless steel pocket rule and work balance of gasket, starting from the part already in the groove, past the covered locking arm hole and into the groove.

Teflon encapsulated coupling gaskets are far superior to other gasket materials when used in corrosive applications.
