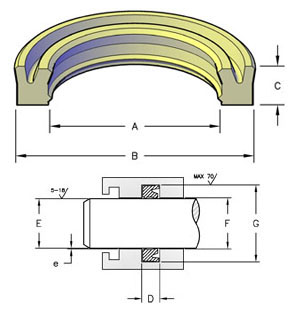

DRTU

These seals are specifically designed with a second lip on their inside diameter and engineered to attain maximum life and reliability in dynamic rod sealing. This feature results in reduced leakage, less friction, increased stability and prevents air and contaminants from entering the cylinder.

SEAL INFORMATION
MATERIAL 92 A URETHANE
TEMPERATURE RANGE -40° to +230° F
PRESSURE RANGE 0 to 6,000 PSI
PART NUMBER (Prefix)(CS) - (ID) - (Height)






Part # I.D. (in) Height (in) Cross Section (in) O.D. (in)
DRTU12-0.75-25 3/4 1/4 1/8 1
DRTU12-1.00-25 1 1/4 1/8 1-1/4
DRTU18-0.75-25 3/4 1/4 3/16 1-1/8
DRTU18-0.75-31 3/4 5/16 3/16 1-1/8
DRTU18-1.00-31 1 5/16 3/16 1-3/8
DRTU18-1.12-25 1-1/8 1/4 3/16 1-1/2
DRTU18-1.12-31 1-1/8 5/16 3/16 1-1/2
DRTU18-1.25-31 1-1/4 5/16 3/16 1-5/8
DRTU18-1.25-37 1-1/4 3/8 3/16 1-5/8
DRTU18-1.37-31 1-3/8 5/16 3/16 1-3/4
DRTU18-1.50-25 1-1/2 1/4 3/16 1-7/8
DRTU18-1.50-31 1-1/2 5/16 3/16 1-7/8
DRTU18-1.50-37 1-1/2 3/8 3/16 1-7/8
DRTU18-1.62-37 1-5/8 3/8 3/16 2
DRTU18-1.75-31 1-3/4 5/16 3/16 2-1/8
DRTU18-1.75-37 1-3/4 3/8 3/16 2-1/8
DRTU18-1.87-37 1-7/8 3/8 3/16 2-1/4
DRTU18-2.00-31 2 5/16 3/16 2-3/8
DRTU18-2.00-37 2 3/8 3/16 2-3/8
DRTU18-2.25-37 2-1/4 3/8 3/16 2-5/8
DRTU18-2.50-37 2-1/2 3/8 3/16 2-7/8
DRTU25-1.00-37 1 3/8 1/4 1-1/2
DRTU25-1.25-37 1-1/4 3/8 1/4 1-3/4
DRTU25-1.37-37 1-3/8 3/8 1/4 1-7/8
DRTU25-1.50-37 1-1/2 3/8 1/4 2
DRTU25-1.75-31 1-3/4 5/16 1/4 2-1/4
DRTU25-1.75-37 1-3/4 3/8 1/4 2-1/4
DRTU25-2.00-37 2 3/8 1/4 2-1/2
DRTU25-2.25-37 2-1/4 3/8 1/4 2-3/4
DRTU25-2.37-37 2-3/8 3/8 1/4 2-7/8
DRTU25-2.50-37 2-1/2 3/8 1/4 3
DRTU25-2.75-37 2-3/4 3/8 1/4 3-1/4
DRTU25-3.00-37 3 3/8 1/4 3-1/2
DRTU25-3.25-31 3-1/4 5/16 1/4 3-3/4
DRTU25-3.25-37 3-1/4 3/8 1/4 3-3/4
DRTU25-3.50-37 3-1/2 3/8 1/4 4
DRTU25-3.75-37 3-3/4 3/8 1/4 4-1/4
DRTU25-4.00-37 4 3/8 1/4 4-1/2
DRTU25-4.50-56 4-1/2 9/16 1/4 5
DRTU25-4.75-56 4-3/4 9/16 1/4 5-1/4
DRTU25-5.50-56 5-1/2 9/16 1/4 6
DRTU31-1.75-37 1-3/4 3/8 5/16 2-3/8
DRTU31-1.75-50 1-3/4 1/2 5/16 2-3/8
DRTU31-2.00-50 2 1/2 5/16 2-5/8
DRTU31-2.50-50 2-1/2 1/2 5/16 3-1/8
DRTU31-2.75-50 2-3/4 1/2 5/16 3-3/8
DRTU31-3.00-50 3 1/2 5/16 3-5/8
DRTU31-4.00-37 4 3/8 5/16 4-5/8
DRTU37-2.75-62 2-3/4 5/8 3/8 3-1/2
DRTU37-3.00-50 3 1/2 3/8 3-3/4
DRTU37-3.50-62 3-1/2 5/8 3/8 4-1/4
DRTU37-4.00-62 4 5/8 3/8 4-3/4
DRTU37-4.50-62 4-1/2 5/8 3/8 5-1/4
DRTU37-4.75-62 4-3/4 5/8 3/8 5-1/2
DRTU37-5.00-62 5 5/8 3/8 5-3/4
