| SEAL INFORMATION | |
|---|---|
| MATERIAL | 92A URETHANE |
| TEMPERATURE RANGE | -65° to +230° F |
| PRESSURE RANGE | 0 to 6,000 PSI |
| PART NUMBER | (Prefix)(CS) - (ID) - (Height) |

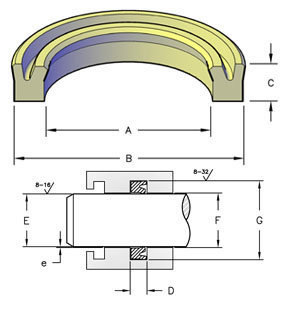

| DRU | |||||||||||
|
|
||||||||||
| Part # | I.D. (in) | Height (in) | Cross Section (in) | O.D. (in) |
|---|---|---|---|---|
| DRU12-0.62-18 | 5/8 | 3/16 | 1/8 | 7/8 |
| DRU12-0.75-12 | 3/4 | 1/8 | 1/8 | 1 |
| DRU12-0.75-25 | 3/4 | 1/4 | 1/8 | 1 |
| DRU12-0.87-12 | 7/8 | 1/8 | 1/8 | 1-1/8 |
| DRU12-1.00-12 | 1 | 1/8 | 1/8 | 1-1/4 |
| DRU12-1.00-18 | 1 | 3/16 | 1/8 | 1-1/4 |
| DRU18-0.87-18 | 7/8 | 3/16 | 3/16 | 1-1/4 |
| DRU18-0.87-25 | 7/8 | 1/4 | 3/16 | 1-1/4 |
| DRU18-1.12-37 | 1-1/8 | 3/8 | 3/16 | 1-1/2 |
| DRU18-1.75-25 | 1-3/4 | 1/4 | 3/16 | 2-1/8 |
| DRU18-1.87-31 | 1-7/8 | 5/16 | 3/16 | 2-1/4 |
| DRU18-2.00-25 | 2 | 1/4 | 3/16 | 2-3/8 |
| DRU18-2.25-31 | 2-1/4 | 5/16 | 3/16 | 2-5/8 |
| DRU18-2.50-31 | 2-1/2 | 5/16 | 3/16 | 2-7/8 |
| DRU25-0.93-37 | 15/16 | 3/8 | 1/4 | 1-7/16 |
| DRU25-1.00-25 | 1 | 1/4 | 1/4 | 1-1/2 |
| DRU25-1.12-25 | 1-1/8 | 1/4 | 1/4 | 1-5/8 |
| DRU25-1.25-25 | 1-1/4 | 1/4 | 1/4 | 1-3/4 |
| DRU25-1.25-31 | 1-1/4 | 5/16 | 1/4 | 1-3/4 |
| DRU25-1.50-31 | 1-1/2 | 5/16 | 1/4 | 2 |
| DRU25-1.62-31 | 1-5/8 | 5/16 | 1/4 | 2-1/8 |
| DRU25-1.87-37 | 1-7/8 | 3/8 | 1/4 | 2-3/8 |
| DRU25-2.00-25 | 2 | 1/4 | 1/4 | 2-1/2 |
| DRU25-2.00-31 | 2 | 5/16 | 1/4 | 2-1/2 |
| DRU25-2.12-37 | 2-1/8 | 3/8 | 1/4 | 2-5/8 |
| DRU25-2.37-37 | 2-3/8 | 3/8 | 1/4 | 2-7/8 |
| DRU25-2.50-25 | 2-1/2 | 1/4 | 1/4 | 3 |
| DRU25-2.50-31 | 2-1/2 | 5/16 | 1/4 | 3 |
| DRU25-2.62-37 | 2-5/8 | 3/8 | 1/4 | 3-1/8 |
| DRU25-3.37-37 | 3-3/8 | 3/8 | 1/4 | 3-7/8 |
| DRU25-3.75-59 | 3-3/4 | 19/32 | 1/4 | 4-1/4 |
| DRU25-4.00-25 | 4 | 1/4 | 1/4 | 4-1/2 |
| DRU25-4.00-56 | 4 | 9/16 | 1/4 | 4-1/2 |
| DRU25-4.50-56 | 4-1/2 | 9/16 | 1/4 | 5 |
| DRU25-5.00-56 | 5 | 9/16 | 1/4 | 5-1/2 |
| DRU25-5.25-59 | 5-1/4 | 19/32 | 1/4 | 5-3/4 |
| DRU25-6.75-59 | 6-3/4 | 19/32 | 1/4 | 7-1/4 |
| DRU31-1.37-37 | 1-3/8 | 3/8 | 5/16 | 2 |
| DRU31-2.00-37 | 2 | 3/8 | 5/16 | 2-5/8 |
| DRU31-2.25-37 | 2-1/4 | 3/8 | 5/16 | 2-7/8 |
| DRU31-2.25-50 | 2-1/4 | 1/2 | 5/16 | 2-7/8 |
| DRU31-2.37-37 | 2-3/8 | 3/8 | 5/16 | 3 |
| DRU31-2.37-50 | 2-3/8 | 1/2 | 5/16 | 3 |
| DRU31-2.75-37 | 2-3/4 | 3/8 | 5/16 | 3-3/8 |
| DRU31-3.00-37 | 3 | 3/8 | 5/16 | 3-5/8 |
| DRU31-3.37-50 | 3-3/8 | 1/2 | 5/16 | 4 |
| DRU31-3.75-50 | 3-3/4 | 1/2 | 5/16 | 4-3/8 |
| DRU31-4.00-50 | 4 | 1/2 | 5/16 | 4-5/8 |
| DRU31-4.50-37 | 4-1/2 | 3/8 | 5/16 | 5-1/8 |
| DRU31-5.50-37 | 5/16 | 6-1/8 | 5/16 | 5-1/2 |
| DRU37-2.00-37 | 2 | 3/8 | 3/8 | 2-3/4 |
| DRU37-2.00-50 | 2 | 1/2 | 3/8 | 2-3/4 |
| DRU37-3.00-37 | 3 | 3/8 | 3/8 | 3-3/4 |
| DRU37-3.00-62 | 3 | 5/8 | 3/8 | 3-3/4 |
| DRU37-3.50-37 | 3-1/2 | 3/8 | 3/8 | 4-1/4 |
| DRU37-3.50-50 | 3-1/2 | 1/2 | 3/8 | 4-1/4 |
| DRU37-3.62-37 | 3-5/8 | 3/8 | 3/8 | 4-3/8 |
| DRU37-4.00-37 | 4 | 3/8 | 3/8 | 4-3/4 |
| DRU37-4.00-50 | 4 | 1/2 | 3/8 | 4-3/4 |
| DRU37-4.00-62 | 3/8 | 4-3/4 | 3/8 | 4 |
| DRU37-4.25-50 | 3/8 | 5 | 3/8 | 4-1/4 |
| DRU37-4.25-62 | 4-1/4 | 5/8 | 3/8 | 5 |
| DRU37-4.37-50 | 4-3/8 | 1/2 | 3/8 | 5-1/8 |
| DRU37-4.50-50 | 4-1/2 | 1/2 | 3/8 | 5-1/4 |
| DRU37-4.50-62 | 4-1/2 | 5/8 | 3/8 | 5-1/4 |
| DRU37-4.75-37 | 4-3/4 | 3/8 | 3/8 | 5-1/2 |
| DRU37-4.87-50 | 4-7/8 | 1/2 | 3/8 | 5-5/8 |
| DRU37-5.25-62 | 5-1/4 | 5/8 | 3/8 | 6 |
| DRU37-5.75-62 | 5-3/4 | 5/8 | 3/8 | 6-1/2 |
| DRU37-6.00-62 | 6 | 5/8 | 3/8 | 6-3/4 |
| DRU37-6.50-50 | 6-1/2 | 1/2 | 3/8 | 7-1/4 |
| DRU37-6.50-62 | 6-1/2 | 5/8 | 3/8 | 7-1/4 |
