VH, WH, WHM, WHT Spiral Internal Retainer Rings
| SEAL RETAINER CROSS REFERENCE | |
|---|---|
| Sealing Prefix | Ramsey Spirolox Prefix |
| VH- | UR- |
| WH- | RR- |
| WHM- | RRN- |
| WHT- | RRT- |
VH, WH, WHM, WHT Spiral Internal Retainer Rings |
|||||||||||||
|
|
||||||||||||

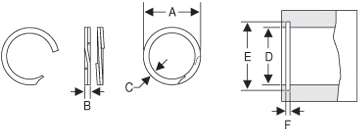

| Part # | Groove Dia. (in) | Groove Width (in) | Thickness (in) | Radial Wall (in) | Housing Dia. (in) | Free O.D. (in) |
|---|---|---|---|---|---|---|
| VH-137 | 1.419 | .031 | .025 | .088 | 1.375 | 1.433 |
| VH-150 | 1.544 | .031 | .025 | .088 | 1.500 | 1.559 |
| VH-162 | 1.682 | .039 | .031 | .118 | 1.625 | 1.701 |
| VH-187 | 1.932 | .039 | .031 | .118 | 1.875 | 1.953 |
| VH-200 | 2.057 | .039 | .031 | .118 | 2.000 | 2.079 |
| VH-206 | 2.18 | .039 | .031 | .158 | 2.062 | 2.162 |
| VH-225 | 2.326 | .039 | .031 | .158 | 2.250 | 2.352 |
| VH-231 | 2.388 | .039 | .031 | .158 | 2.312 | 2.415 |
| VH-243 | 2.513 | .039 | .031 | .158 | 2.437 | 2.541 |
| VH-250 | 2.576 | .039 | .031 | .158 | 2.5 | 2.605 |
| VH-281 | 2.888 | .039 | .031 | .158 | 2.812 | 2.920 |
| VH-281SS | 2.888 | .039 | .031 | .158 | 2.812 | 2.920 |
| VH-300 | 3.076 | .039 | .031 | .158 | 3.000 | 3.110 |
| VH-412 | 4.235 | .052 | .046 | .225 | 4.125 | 4.279 |
| VH-462 | 4.735 | .052 | .046 | .225 | 4.625 | 4.784 |
| VH-550 | 5.638 | .067 | .061 | .225 | 5.500 | 5.694 |
| VH-575 | 5.894 | .067 | .061 | .225 | 5.750 | 5.953 |
| VH-675 | 6.919 | .067 | .061 | .265 | 6.750 | 6.988 |
| WH-100 | 1.043 | .042 | .037 | .075 | 1.000 | 1.054 |
| WH-112 | 1.167 | .042 | .037 | .075 | 1.125 | 1.180 |
| WH-125 | 1.298 | .048 | .043 | .085 | 1.250 | 1.312 |
| WH-128 | 1.329 | .048 | .043 | .085 | 1.281 | 1.342 |
| WH-137 | 1.427 | .048 | .043 | .095 | 1.375 | 1.442 |
| WH-150 | 1.552 | .048 | .043 | .095 | 1.500 | 1.567 |
| WH-156 | 1.617 | .056 | .049 | .108 | 1.562 | 1.634 |
| WH-162 | 1.684 | .056 | .049 | .108 | 1.625 | 1.701 |
| WH-175 | 1.813 | .056 | .049 | .118 | 1.750 | 1.834 |
| WH-187 | 1.942 | .056 | .049 | .118 | 1.875 | 1.960 |
| WH-200 | 2.071 | .056 | .049 | .128 | 2.000 | 2.091 |
| WH-204 | 2.118 | .056 | .049 | .128 | 2.047 | 2.138 |
| WH-231 | 2.390 | .056 | .049 | .138 | 2.312 | 2.413 |
| WH-237 | 2.453 | .056 | .049 | .138 | 2.375 | 2.476 |
| WH-250 | 2.582 | .056 | .049 | .148 | 2.500 | 2.606 |
| WH-283 | 2.928 | .056 | .049 | .168 | 2.834 | 2.954 |
| WH-287 | 2.969 | .056 | .049 | .168 | 2.875 | 2.995 |
| WH-300 | 3.096 | .068 | .061 | .168 | 3.000 | 3.122 |
| WH-325 | 3.350 | .068 | .061 | .178 | 3.250 | 3.379 |
| WH-350 | 3.606 | .068 | .061 | .188 | 3.500 | 3.636 |
| WH-356 | 3.672 | .068 | .061 | .198 | 3.562 | 3.703 |
| WH-400 | 4.124 | .068 | .061 | .218 | 4.000 | 4.157 |
| WH-406 | 4.187 | .068 | .061 | .218 | 4.063 | 4.222 |
| WH-450 | 4.636 | .068 | .061 | .238 | 4.500 | 4.674 |
| WH-500 | 5.144 | .079 | .072 | .250 | 5.000 | 5.185 |
| WH-525 | 5.393 | .079 | .072 | .250 | 5.250 | 5.436 |
| WH-550 | 5.647 | .079 | .072 | .250 | 5.550 | 5.693 |
| WH-551 | 5.658 | .079 | .072 | .250 | 5.511 | 5.703 |
| WH-570 | 5.861 | .079 | .072 | .250 | 5.708 | 5.909 |
| WH-600 | 6.153 | .079 | .072 | .250 | 6.000 | 6.202 |
| WH-612 | 6.297 | .094 | .086 | .312 | 6.125 | 6.349 |
| WH-62 | .651 | .030 | .025 | .045 | .625 | .658 |
| WH-700 | 7.182 | .094 | .086 | .312 | 7.000 | 7.239 |
| WH-712 | 7.317 | .094 | .086 | .312 | 7.125 | 7.376 |
| WH-750 | 7.692 | .094 | .086 | .312 | 7.500 | 7.754 |
| WH-78 | .812 | .036 | .031 | .065 | .781 | .821 |
| WH-850 | 8.712 | .094 | .086 | .375 | 8.500 | 8.780 |
| WH-87 | .912 | .036 | .031 | .065 | .875 | .922 |
| WHL-1013 | 10.100 | .115 | .108 | .250 | 10.00 | 10.120 |
| WHL-371 | 3.705 | .091 | .086 | .187 | 3.500 | 3.725 |
| WHL-378-HDC | 3.755 | .086 | .077 | .132 | 3.625 | 3.780 |
| WHL-392 | 3.909 | .103 | .093 | .187 | 3.750 | 3.929 |
| WHL-424 | 4.220 | .098 | .090 | .187 | 4.125 | 4.249 |
| WHL-472 | 4.700 | .098 | .093 | .187 | 4.500 | 4.721 |
| WHL-473 | 4.712 | .120 | .111 | .250 | 4.500 | 4.732 |
| WHL-495 | 4.938 | .103 | .093 | .187 | 4.750 | 4.958 |
| WHL-525 | 5.223 | .098 | .090 | .187 | 5.125 | 5.252 |
| WHL-573 | 5.720 | .120 | .111 | .250 | 5.500 | 5.739 |
| WHL-574 | 5.720 | .098 | .093 | .187 | 5.500 | 5.740 |
| WHL-595 | 5.936 | .131 | .122 | .187 | 5.750 | 5.956 |
| WHL-672 | 6.706 | .120 | .111 | .250 | 6.500 | 6.726 |
| WHL-683 | 6.800 | .115 | .105 | .204 | 6.500 | 6.830 |
| WHL-724 | 7.229 | .131 | .122 | .245 | 6.875 | 7.249 |
| WHL-770 | 7.680 | .120 | .111 | .250 | 7.500 | 7.700 |
| WHL-849 | 8.473 | .131 | .122 | .245 | 8.125 | 8.493 |
| WHL-871 | 8.690 | .120 | .111 | .250 | 8.500 | 8.710 |
| WHL-876 | 8.740 | .120 | .111 | .250 | 8.520 | 8.760 |
