ADHESIVES - UV Curing Systems

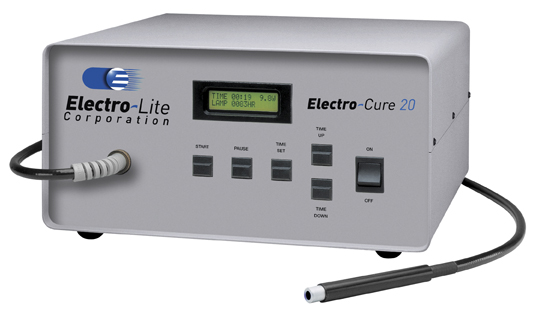

Electro-Cure-20 UV Spot System

The EC-20 provides UV curing up to 20 W/cm2 @ 365nm. The systems allows PC control and data collection via open architecture software, a closed loop “set and forget” intensity setting and a “step set” function that increases power at selected time intervals. The EC-20 is a compact and robust spot curing system that meets the broad spectrum of UV curing tasks while delivering the most accurate and repeatable performance of any system in its price range.

Specifications

  • UV Intensity: 20 W/cm2 @ 365nm
  • Lamp: 200 W short arc mercury
  • Lamp life: 1500 hrs. functional time
  • Panel display: LCD
Literature Download
