CPS Capped Piston T-Seals |
|||||||||||
heavy duty double-acting assembly, the capped piston T-seal exhibits excellent sealability, extrusion resistance and wearability. T-seals with 'BR' suffix utilize a Bronze Filled PTFE cap instead of the standard Glass Filled PTFE cap. INSTALLATION OF PTFE PISTON SEALS To prevent the PTFE ring from snapping into the wrong groove, cover wear ring grooves with plastic tape. After seal installation, assembly of the cylinder may be difficult if the piston seal is loose on the piston or the cylinder has an inadequate leading edge chamfer. In such cases, compress the piston seal with belting or a suitable hose clamp. If the piston seal must pass threads or any other sharp edges during the cylinder assembly, cover the edges with plastic tape or wrap. |
|

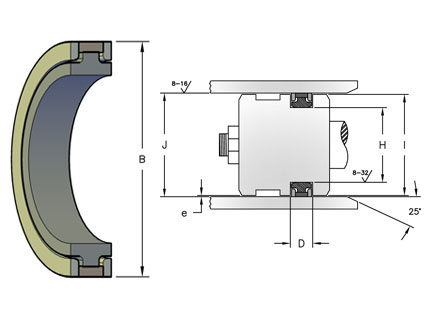

Part # | Groove Dia. (in) | Groove Width (in) | Goove Depth (in) | Bore (in) |
---|---|---|---|---|
CPS-10000 | 9.270 | .750 | - | 10 |
CPS-1750BR | 1.375 | .424 | .187 | 1.750 |
CPS-2000 | 1.625 | .424 | .187 | 2.000 |
CPS-2500 | 2.125 | .424 | .187 | 2.500 |
CPS-2750BR | 2.375 | .424 | .187 | 2.750 |
CPS-3000 | 2.520 | .579 | .240 | 3.000 |
CPS-3000A | 2.450 | .433 | .275 | 3.000 |
CPS-3000BR | 2.520 | .579 | .240 | 3.000 |
CPS-3250 | 2.770 | .579 | .240 | 3.250 |
CPS-3500 | 3.020 | .579 | .240 | 3.500 |
CPS-3500BR | 3.020 | .579 | .240 | 3.500 |
CPS-3750 | 3.270 | .579 | .240 | 3.750 |
CPS-4000 | 3.520 | .579 | .240 | 4.000 |
CPS-4000BR | 3.520 | .579 | .240 | 4.000 |
CPS-4250 | 3.770 | .579 | .240 | 4.250 |
CPS-4500 | 4.020 | .579 | .240 | 4.500 |
CPS-4500BR | 4.020 | .579 | .240 | 4.500 |
CPS-5000 | 4.270 | .750 | .365 | 5.000 |
CPS-5000BR | 4.270 | .750 | .365 | 5.000 |
CPS-5250 | 4.520 | .750 | .365 | 5.250 |
CPS-5500 | 4.770 | .750 | .365 | 5.500 |
CPS-5500BR | 4.770 | .750 | .365 | 5.500 |
CPS-5504BR | 5.020 | .579 | .240 | 5.500 |
CPS-6000 | 5.270 | .750 | .365 | 6.000 |
CPS-6000A | 5.520 | .579 | .240 | 6.000 |
CPS-6015 | 5.285 | .750 | .365 | 6.015 |
CPS-6250 | 5.520 | .750 | .365 | 6.250 |
CPS-6250BR | 5.520 | .750 | .365 | 6.250 |
CPS-6500 | 5.770 | .750 | .365 | 6.500 |
CPS-6504BR | 6.020 | .579 | .240 | 6.500 |
CPS-7000 | 6.270 | .750 | .365 | 7.000 |
CPS-7000BR | 6.270 | .750 | .365 | 7.000 |
CPS-7250BR | 6.520 | .750 | .365 | 7.250 |
CPS-7500 | 6.770 | .750 | .365 | 7.500 |
CPS-8000 | 7.270 | .750 | .365 | 8.000 |
CPS-9000 | 8.270 | .750 | - | 9 |
